Superior 3-Pane glazing Aluminum-Clad Wood Casement Windows for Soundproofing & Energy Savings

Our aluminum-clad wood casement window merges the timeless warmth of natural solid wood with the rugged weather resistance of aerospace-grade aluminum, delivering a high-performance building solution that elevates both aesthetic elegance and functional durability. Crafted with precision engineering and strict quality control standards, this window series is built to meet the rigorous demands of modern construction, balancing refined design with long-term practicality.

Every aluminum-clad wood casement window we produce is engineered to deliver year-round indoor comfort, cutting energy waste while creating a quiet, cozy interior atmosphere. From high-end residential developments to commercial building projects, this window system adapts seamlessly to diverse design styles and performance requirements, making it a trusted choice for projects that demand both visual appeal and reliable long-term performance.

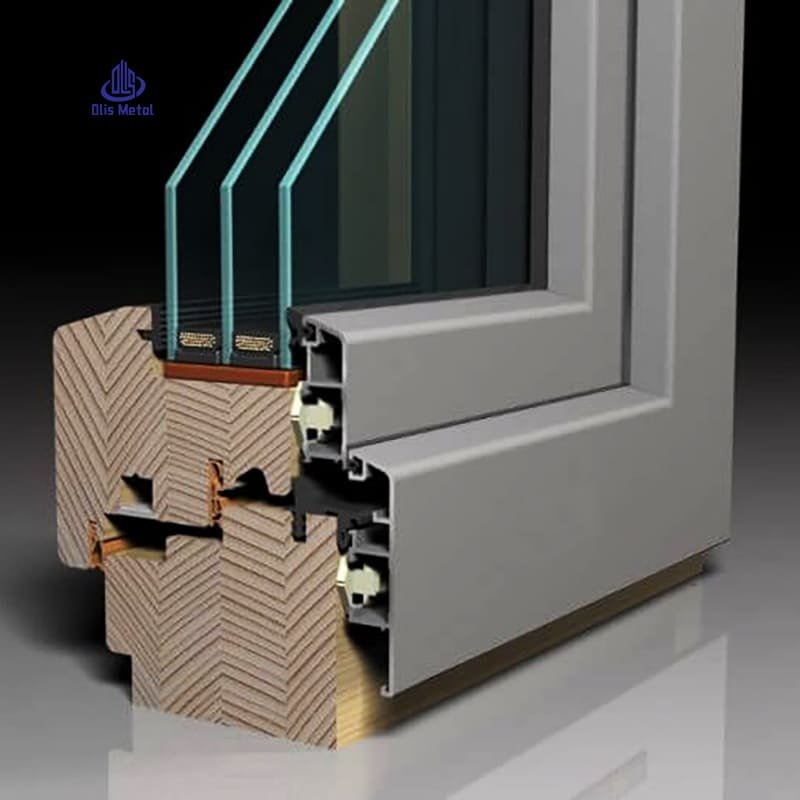

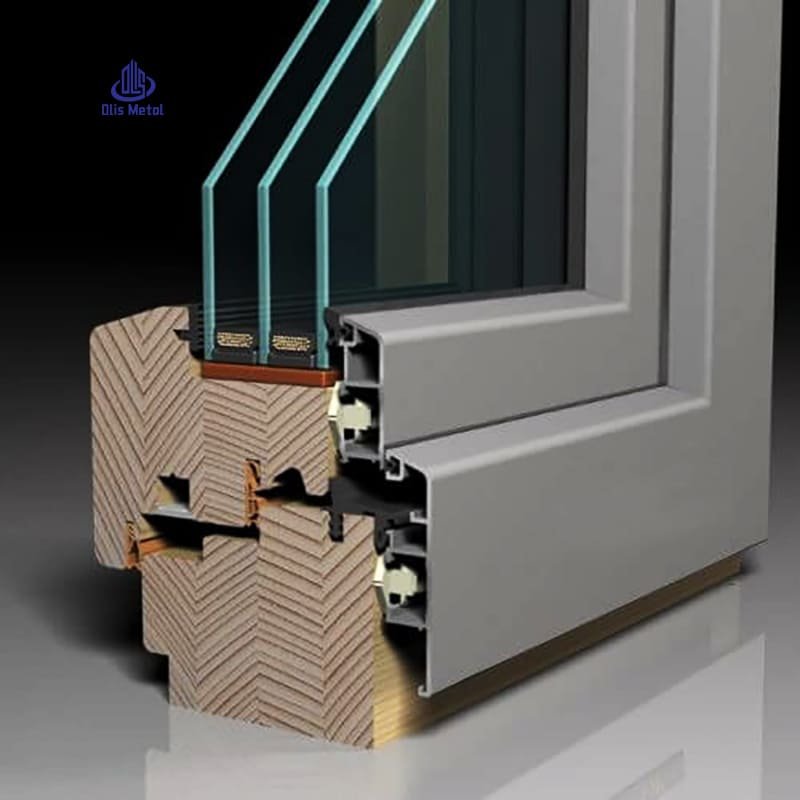

The defining advantage of our aluminum-clad wood casement window lies in its innovative dual-material composite frame structure. The exterior side is fully clad with high-grade 6063-T5 aluminum alloy, extruded into a multi-chamber profile that maximizes structural rigidity while minimizing heat conduction. This aluminum cladding undergoes a multi-stage powder coating process that delivers exceptional corrosion resistance, UV stability, and scratch resistance. The outer protective layer shields the window from harsh outdoor elements, including heavy rain, strong winds, and prolonged sun exposure, ensuring the frame retains its shape and flawless finish for decades with minimal maintenance.

On the interior side, the frame features carefully selected kiln-dried solid wood, machined with precision tenon-and-mortise joints for superior structural integrity and dimensional stability. The natural wood grain brings a warm, inviting texture to indoor spaces, adding a touch of refined luxury that synthetic materials cannot replicate. Each wood component undergoes professional anti-corrosion and anti-insect treatment, eliminating the risk of warping, cracking, or decay even in fluctuating humidity levels.

This aluminum-wood composite design delivers the best of both worlds: the low-maintenance, weather-resistant performance of aluminum on the outside, and the natural, comfortable aesthetic of wood on the inside. Unlike solid wood windows, there is no need for frequent repainting or refinishing; unlike all-aluminum windows, it provides a warmer interior feel and better thermal inertia for more stable indoor temperatures.

Our aluminum-clad wood casement window comes standard with a triple-glazed insulating glass unit, paired with high-performance warm edge spacers and inert argon gas filling to maximize thermal efficiency. The three layers of tempered glass create two separate air cavities that act as natural thermal barriers, drastically reducing conductive and convective heat transfer between the interior and exterior.

When paired with optional Low-E coating, this window achieves a U-value as low as 1.2 W/(m²·K), delivering remarkable energy savings that can reduce annual heating and cooling costs by up to 40%. This low-energy performance not only cuts long-term operational expenses for building owners but also reduces the overall carbon footprint of the structure, aligning with modern green building standards and energy codes.

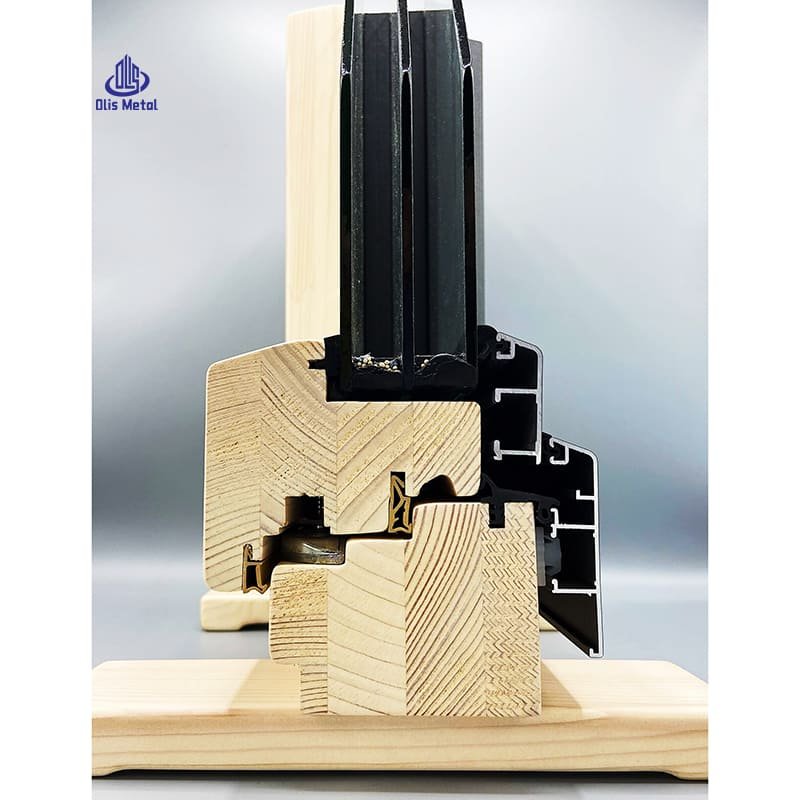

Inside the frame, continuous PA66 GF25 thermal break strips interrupt the heat conduction path of the aluminum profile, further preventing thermal bridging and condensation on interior surfaces. This means even in extremely cold winters, the indoor side of the frame stays at a comfortable temperature, eliminating cold spots and reducing the risk of mold growth caused by accumulated condensation.

Beyond thermal efficiency, our aluminum-clad wood casement window delivers impressive sound insulation capabilities. The dense triple-glazed glass, combined with the high-density solid wood frame and multi-layer sealing system, can reduce external noise transmission by up to 42 dB. This effectively blocks traffic noise, construction sounds, and other outdoor disturbances, creating a peaceful, quiet indoor environment ideal for rest, focused work, and daily life.

Windproof performance is another core strength of this window system. The multi-chamber aluminum extrusion and tightly fitted solid wood inner frame work together to boost overall structural rigidity, allowing the window to withstand extreme wind loads up to Class 9. Even in coastal areas or regions prone to strong seasonal storms, the window remains tightly sealed and structurally stable, with zero air leakage or frame deformation under rated pressure.

The multi-stage EPDM rubber sealing system forms a continuous, airtight barrier around the entire sash perimeter, preventing drafts, dust, and wind-driven rainwater from entering the building. Water penetration resistance reaches Class 6, ensuring reliable waterproof performance even during heavy, wind-swept rain events. This all-weather protection gives long-term peace of mind for projects located in any climate zone.

Security and long-term reliability are built into every detail of our aluminum-clad wood casement window. Each window is fitted with a heavy-duty multi-point locking system that secures the sash at multiple positions along the frame, creating uniform compression of the seals and significantly improving resistance to forced entry. The hardware is precision-engineered for smooth, effortless operation, tested to withstand over 50,000 open-close cycles without performance degradation or adjustment needs.

The sealing system uses high-quality EPDM rubber gaskets with excellent elasticity and aging resistance, maintaining a tight, consistent seal even after years of exposure to temperature cycles and UV radiation. Unlike cheaper sealing materials that harden and crack over time, our gaskets retain their flexibility and sealing performance, ensuring long-term airtightness and waterproofing throughout the window’s service life.

For added convenience and safety, the window supports both inward and outward opening configurations, and can be fitted with integrated fall-prevention devices and child safety locks. These features make the window suitable for high-rise buildings and family homes alike, without compromising on ease of use or clean visual lines.

We recognize that every project has unique design and performance requirements, which is why our aluminum-clad wood casement window offers extensive customization options. The exterior aluminum cladding is available in over 200 standard RAL colors, including matte, satin, and metallic finishes, allowing perfect coordination with any building facade style.

The interior wood can be specified in a variety of premium wood species and stain finishes, including oak, walnut, teak, and cherry, to complement different interior design aesthetics. We also offer fully custom sizing and shape options, including arched, circular, and irregular configurations, to support creative and distinctive architectural designs.

Glass options are equally flexible, with upgrades including laminated safety glass, tinted glass, frosted privacy glass, and solar control Low-E glass. Hardware finishes, handle styles, and opening modes can all be tailored to match project specifications, ensuring every window fits its intended space and functional requirements perfectly.

As an experienced window manufacturer with over a decade of industry expertise, we control every step of production from profile extrusion and wood processing to final assembly and quality inspection. Our modern production facility is equipped with precision CNC machining equipment and automated assembly lines, ensuring consistent dimensional accuracy and reliable product quality across every order, large or small.

We maintain strict quality control protocols at each production stage, with multiple inspection points to verify material quality, machining precision, sealing performance, and overall assembly quality. Every aluminum-clad wood casement window undergoes comprehensive performance testing before leaving the factory, so you can be fully confident in its long-term durability and field performance.

With large-scale production capacity, we can efficiently fulfill both small custom orders and large-volume project orders, with flexible lead times and reliable global shipping solutions. Our technical team provides full support from early design consultation to post-delivery guidance, helping you select the right window configurations for your project and ensuring smooth, efficient installation on site.

We back our products with a comprehensive warranty covering both the frame structure and hardware components, providing long-term assurance for your investment. When you work with us, you get more than just windows — you gain a dedicated manufacturing partner focused on delivering high-quality solutions that meet your project’s exact performance and design standards.
